AUTOMATIC WATER LEVEL CONTROLLER
Fully Automatic Water Level Controller with Dry Run Protection
Fully Automatic Water Level Controller For Submersible Pumps Having Button Type Multi Capacitors Starters With One Float Switch Sensor
About this item:
- Fully automatic water level controller with dry run protection single phase
- Anti corrosion stainless sensor
- Contact capacity : 30 A
- Start, stop, auto, manual switch
- Tank water level indication, pump on indication
- BRAND: Roy Security
- Product Code: EN2051
- Color: White
- Item Dimension: (LXWXH) 14X10.5X7 Centimeters
- Material: Plastic
- Item Weight: 800 Grams
- Availability: In Stock
View Accessories
Highlights
Package Contains
Item Specification
Features
Additional Information
Highlights
- Fully Automatic Operation with Manual Mode Selection
- Capacity upto 3 HP
- Float Level Sensor
- Water level indication led’s
- With Optional Underground Tank Installation
- ISO 9001:2015 CERTIFIED
Package Contains

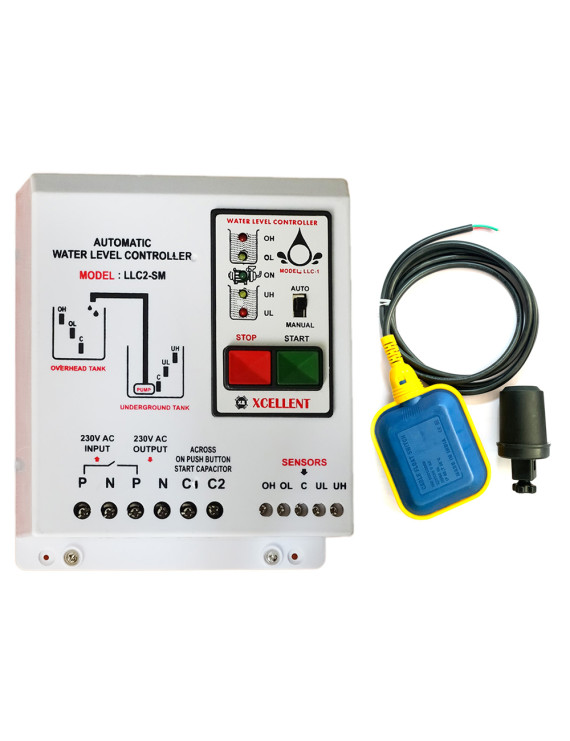

- Fully automatic water level controller
- One Float Sensor
Item Specification
- Condition: unused and undamaged item that is fully operational and functions as intended.
- Warranty: 1 year warranty
- Warranty service: fully automatic water level controller for tank this model will automatically switch on and automatically switch off the motor.
Has auto on – condition: new, unused and undamaged item that is fully operational and functions as intended. -Warranty: 1 year seller warranty. -working & specification: Fully automatic water level controller is used to switch on and off the motor according to level of water in upper tank and under ground tank, -It Has 2 mode of operation 1-AUTO & 2-MANUAL, 1-In Auto Mode:- Auto on occurs when the upper tank water level is low (When sensor in downward) and confirming water is present in the under ground tank. Auto on occurs when the tank level is low. Auto off when tank is full.

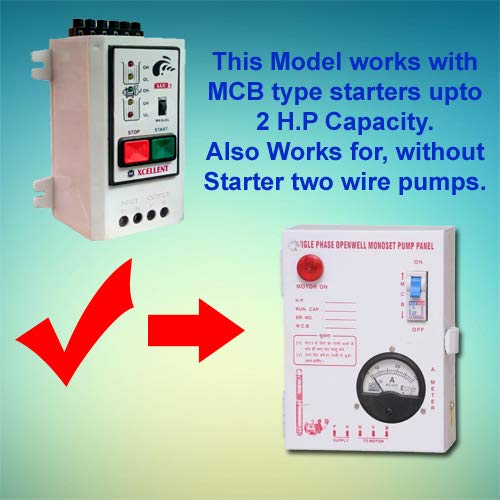

Suitable for motor pump upto 3 Hp operated by a Submersible Control Panels. also suitable for electronic starter.
Has LED indications for motor on. also has high and low level indication to know the level of tank.
Dry run protection. Corrosion free sensor. Has manual mode and auto mode functions. In auto mode, auto on and auto off operation occurs.
In manual mode, the motor pump will be controlled by ON OFF buttons..
Long Life
Easy to install. Advanced embedded technology.
Features
1.Elegant looks
2. No man power required to operate as fully automatic
3.Avoid overflow & dry running longer life no mechanical system
4.Saves electricity
5.Compact plastic (virgin) housing
6. Control underground tank to overhead tank
Additional Information
- Operating voltage 220-250 volts AC.
- Frequency 50 hz
- Load capacity each switch (3 Hp)
